60cm Integrated Undercounter Beverage Centre BV60INT

595

Width

820 - 870

Height

577

Depth

135L

Volume

BV60INT

Award Advance Series Integrated Undercounter Beverage centre

  • 135L Capacity
  • Double Glazed Door to allow fitment of custom joinery panel and handle
  • 3 Wire Shelves
  • LED Controls and Temperature Display
  • Interior Lighting
  • 2-10 Degree Temperature Range

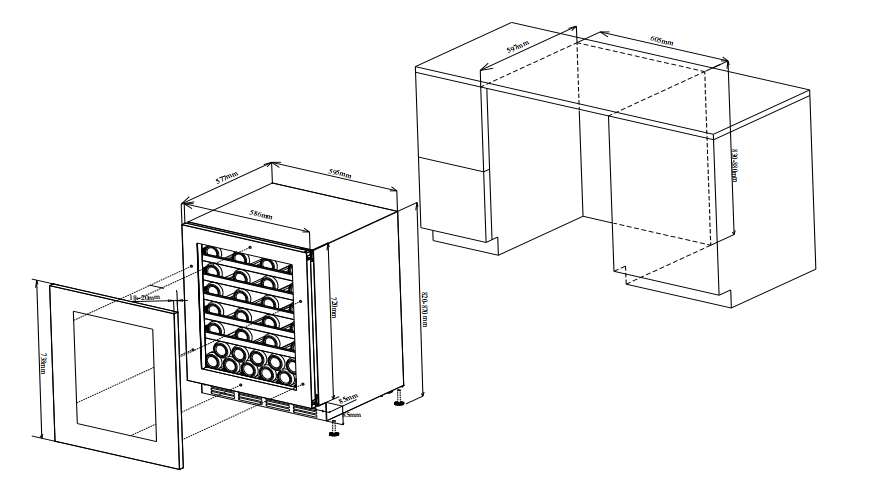

Integration Requirements

Panel Dimensions 738mm h x width to suit aperture with window 550mm h x 442mm w

Door opening minimum 92 degrees maximum 112 degrees

Reversible Door

Ventilation

Requires 300cm2 of ventilation via kick panel
